Mix Tape Fuzz

This kit compares to the Demo Tape Fuzz.



There is no endorsement or approval from any manufacturer and this information is for comparison only.

• Build Guide
• 3PDT Board
• Schematic

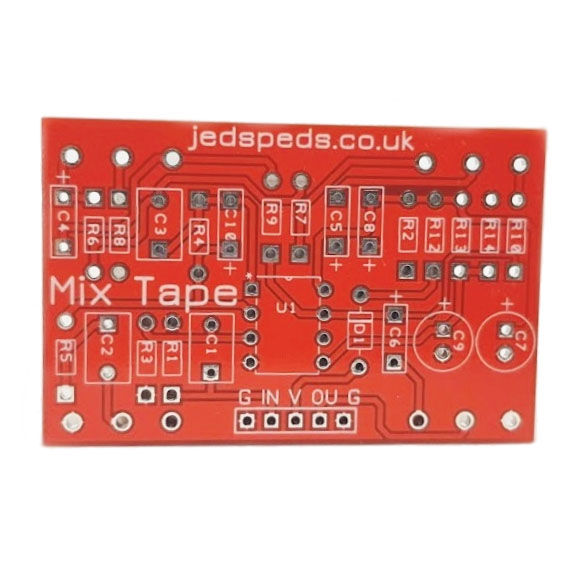

PCB Only - Just the plain PCB

PCB & Components - PCB, onboard components and any pots and toggle switches.

PCB & Components and off board parts - As above with off board components (foot switch, Jacks, 9v socket, LED)

Full Kit - As above with undrilled enclosure.

Full Kit & Drilling - Full kit with drilled enclosure.

Drilling is an optional extra for the Full Kit. There is a small surcharge for this.



Drilling includes all the holes for a complete pedal.

You will need 4 knobs for this kit. I suggest you get medium sized.

Please be sure to read the build document before you order. The kits are enjoyable but can also be challenging.

You will have to identify components, calculate resistor codes and be able to solder them into place.

All kits require full assembly and any images of completed PCBs are for reference only.

If you want the kit pre building then select this option, you must add your knobs from the knob section or it will come without any!

The pre build options is exactly that, you are buying a kit and I am doing the build for you. There are no returns accepted on these but I do give a 12 month repair warranty so should a fault be developed I will repair it.
